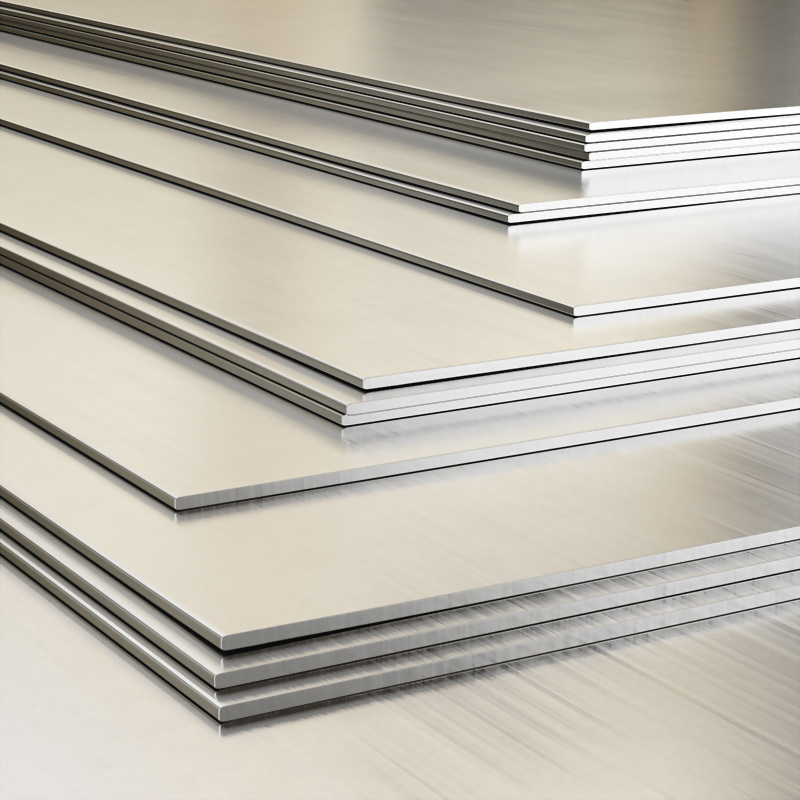

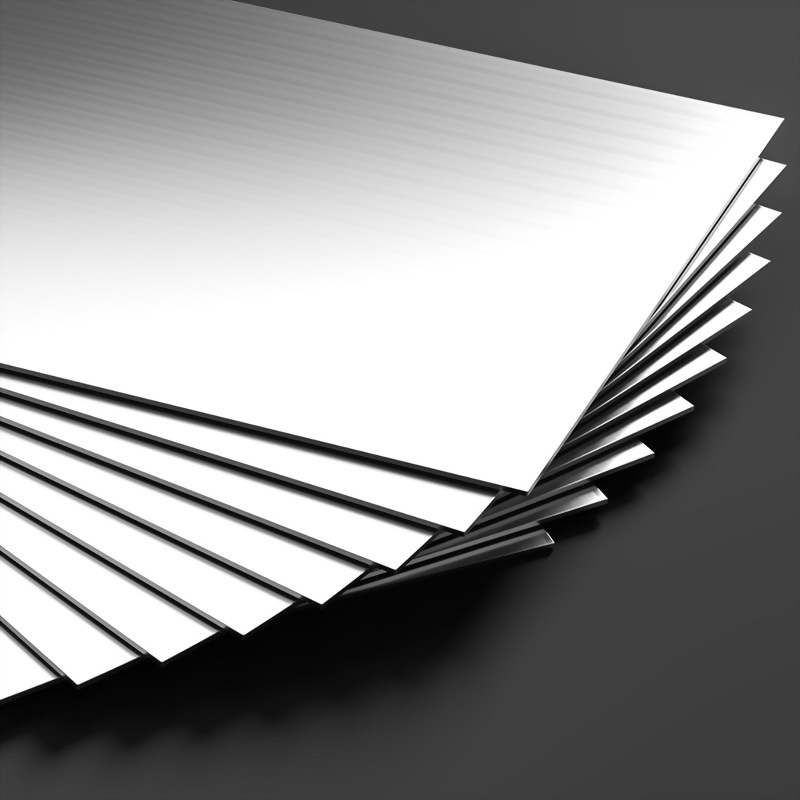

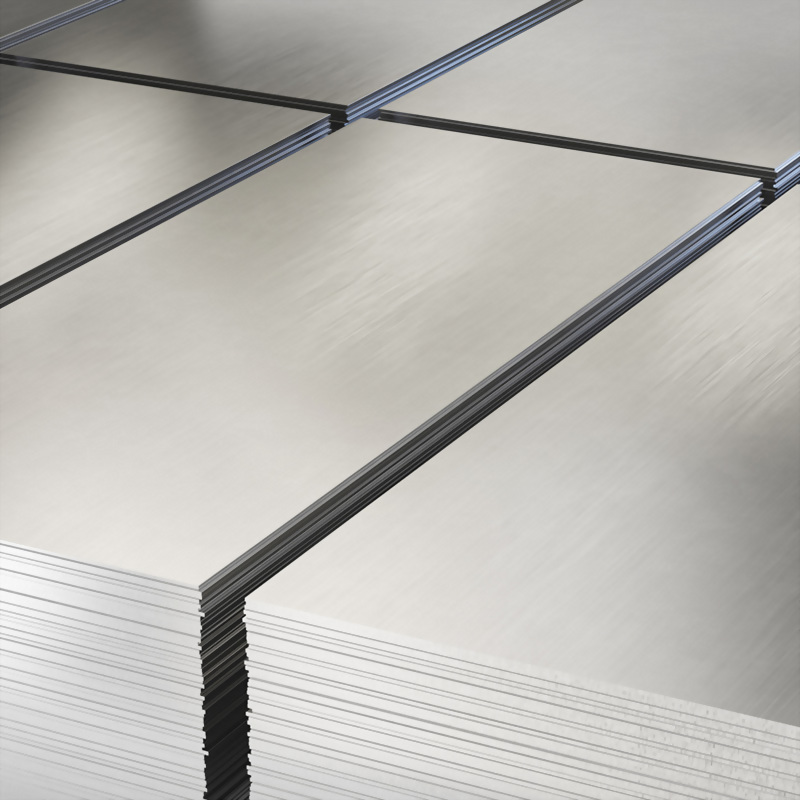

Stainless Steel Sheets
Width : 10~1,600 mm
Length : 10~4,000mm
We have sheets stock of 301, 304, 316, 409, 420 and 430
Stainless steel sheets surface types include NO.1, 2B, NO.4, Hair Line ( HL )
and Bright Annealed ( BA ), Can be selected according to the actual needs of customers.
According to customer needs, Provide paper interleaf and protection film coating (Protection Film can be applied to single and double-sided), as well as export wooden frame or wooden box packaging and other services.
Stainless steel sheets mill source
301 : Chia Far, Walsin Lihwa, Nisshin Steel, Nippon Kinzoku and
Tang Eng (Thickness 0.6mm up)
304 : YUSCO, Tung Mung, Tang Eng and Walsin Lihwa can choose
316L : YUSCO, Tang Eng and Walsin Lihwa
430 : YUSCO, Tung Mung, YLSS and Chia Far
420J2 : JFE Steel, Chia Far, Nisshin Steel and YUSCO can choose
| Grade | Symbol of Temper | Hardness (HV) | Thickness (mm) | Width (mm) | Length (mm) |
|
301 |
1/2H |
310~370 |
0.1~3.0 |
10~1,250 |
10~4,000 |
|
3/4H |
370~430 |
0.1~3.0 |
10~1,250 |
10~4,000 |
|
|
H |
430~490 |
0.1~3.0 |
10~1,250 |
10~4,000 |
|
|
EH |
490~530 |
0.1~3.0 |
10~1,250 |
10~4,000 |
|
|
SEH |
≧ 530 |
0.1~3.0 |
10~1,250 |
10~4,000 |
| Grade | Finish | Thickness (mm) | Width (mm) | Length (mm) |
| 304/L |
NO.1 |
2.5~4.0 |
10~1,600 |
10~4,000 |
| 2B | 0.3~3.0 |
10~1,600 |
10~4,000 |
|
| BA | 0.1~2.0 |
10~1,600 |
10~4,000 |
|
| NO.4 | 0.4~3.0 |
10~1,600 |
10~4,000 |
|
| H.L. | 0.4~3.0 |
10~1,600 |
10~4,000 |
|
| 316L | NO.1 | 3.0~4.0 |
10~1,600 |
10~4,000 |
|
2B |
0.5~3.0 |
10~1,600 |
10~4,000 |
|
| BA | 0.15~2.0 |
10~1,600 |
10~4,000 |
|
|
NO.4 |
0.4~3.0 |
10~1,600 |
10~4,000 |
|
| H.L. | 0.4~3.0 |
10~1,600 |
10~4,000 |
| Grade | Finish | Thickness (mm) | Width (mm) | Length (mm) |
|
409L |
2B |
1.0~3.0 |
10~1,600 |
10~4,000 |
|
2D |
1.0~3.0 |
10~1,600 |
10~4,000 |
|
|
420J2 |
2B |
1.0~3.0 |
10~1,600 |
10~4,000 |
|
2D |
1.0~3.0 |
10~1,600 |
10~4,000 |
|
|
430 |
2B |
0.15~3.0 |
10~1,600 |
10~4,000 |
|
BA |
0.15~2.0 |
10~1,600 |
10~4,000 |
|
|
NO.4 |
0.4~2.5 |
10~1,600 |
10~4,000 |
|
|
HL |
0.4~2.5 |
10~1,600 |
10~4,000 |
If the stainless steel specifications are not listed in the above list, you can contact us ! !
- Customizable sizes are available to reduce the generation of residual materials in the customer's manufacturing process.
- The direction of the sheets grain can be specified.
- Sheets are cut to a tolerance of 0.5 mm, depending on the situation, can request to 0.1 mm.
-
If the customer needs samples first, we can provide them according to the situation.
